SPECIFICATIONS

name: Battery Spot Welding Machine

type: Nickel sheet small household butt welding

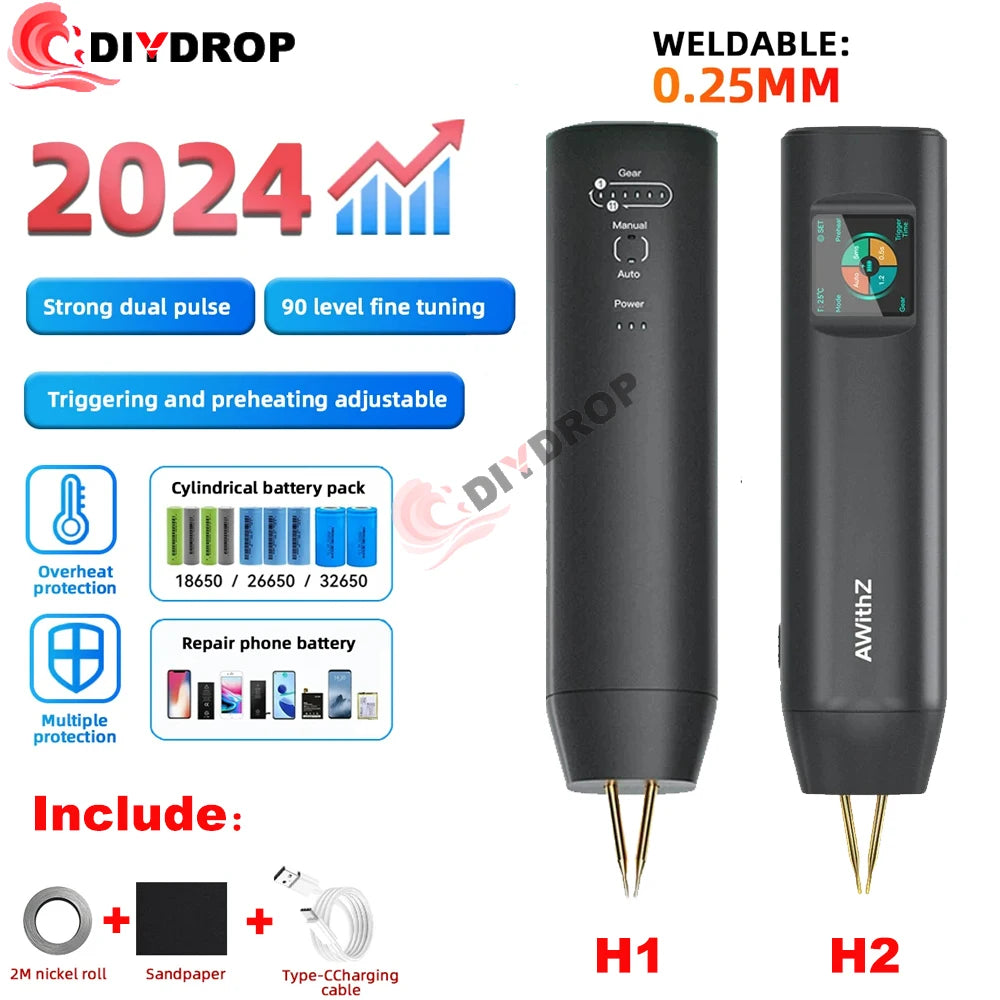

Model type:: H2 H1

Equipment setting:: 90 adjustable gears

Spot welding method:: automatic/manual gear

Input interface:: Type-C

Input parameters:: 5v/1A (MAX)

Output voltage:: 4.2V (MAX)

Output current: ): 650A (MAX

Working temperature:: -10~60 ℃

Charging temperature:: 0-60 ℃

Brand Name: NoEnName_Null

Model Number: 11 Gears Spot Welder

Rated Duty Cycle: 5v/1A

Rated Capacity: 650A

Usage: for 18650/26650/36650 and other cylindrical batteries,for mobile phon

Weight: 251

Dimensions: 8.00cm*21.00cm*3.00cm

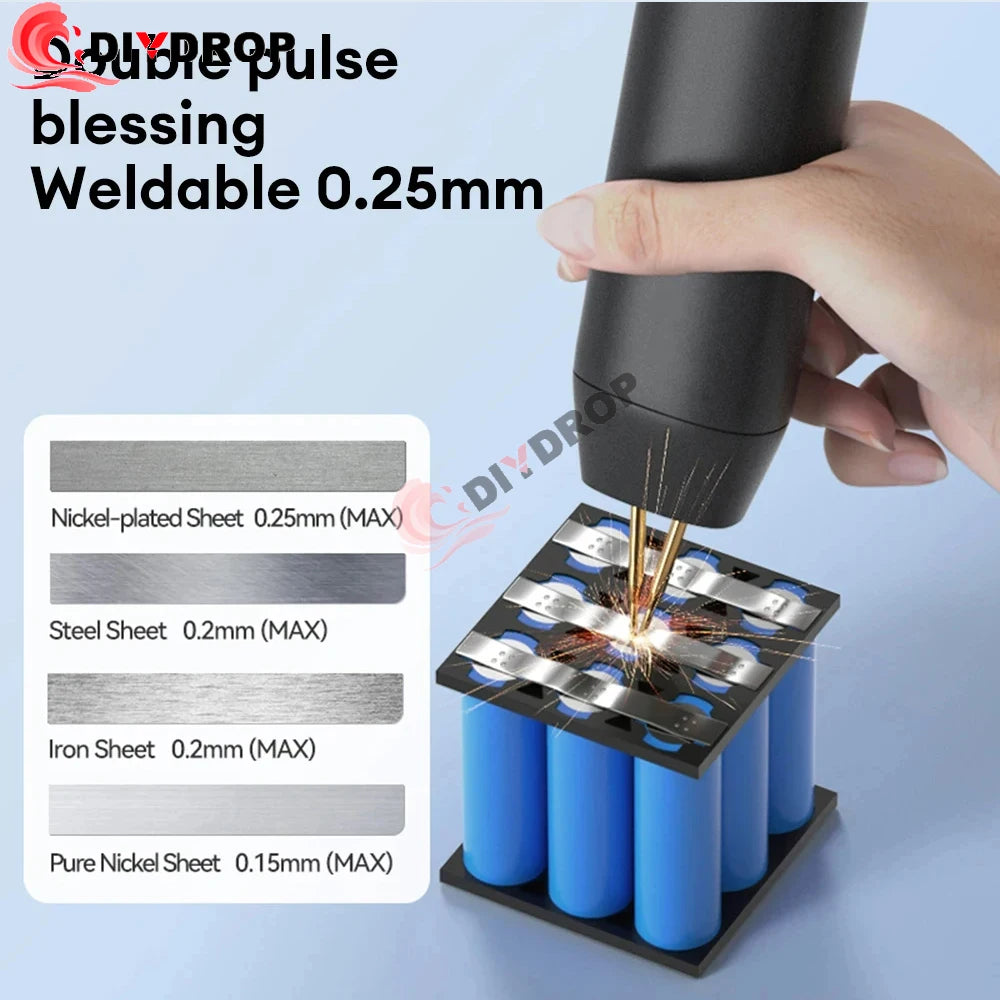

Max. Welding Thickness: 0.1mm

Origin: Mainland China

Certification: CE

Choice: yes

semi_Choice: yes

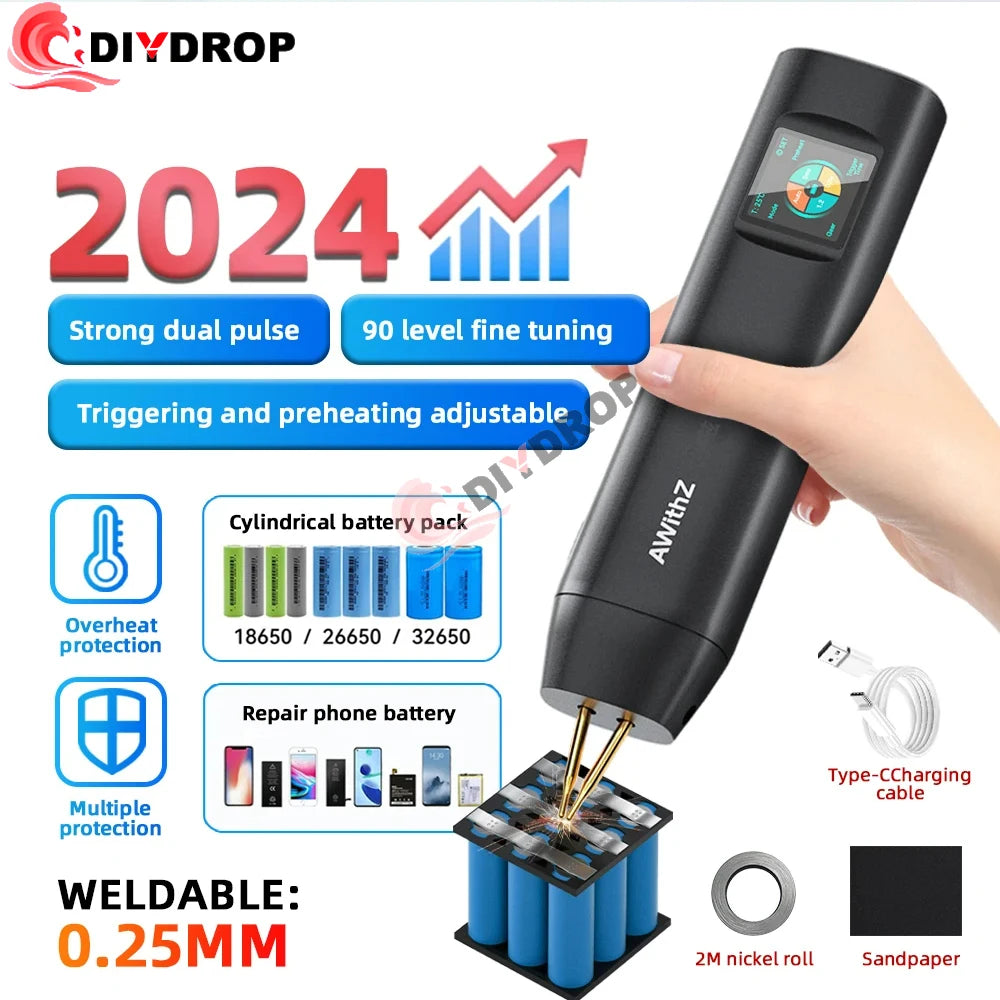

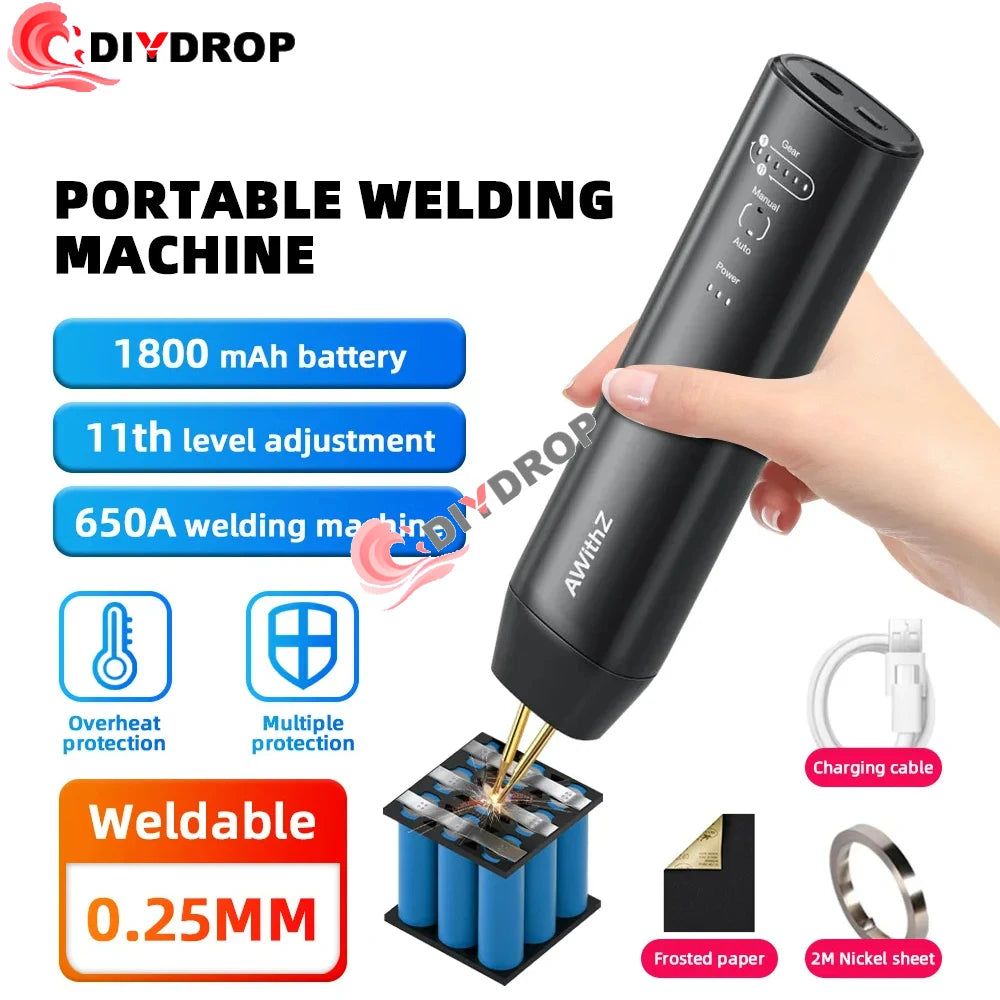

Portable 90 Gears Adjustable Spot Welder with LCD Digital Color Screen Display for 18650/26650/36650 Li-ion Battery 0.1~0.25-18650mm

Features:

2-in-1 spot welding pen- a handheld spot welding machine that does not require additional spot welding pens. It is easy to carry around and go anywhere. It combines the built-in power supply and soldering pen into one, allowing for easy soldering without the need for an external soldering pen.

Widely applicable - suitable for cylindrical batteries such as 18650/26650/36650, mobile phone batteries, and electronic devices that require batteries. Spot welding machines can be used for electronic devices that are damaged due to battery damage, replacing batteries and restoring use (similar to handheld drills), saving money and protecting the environment.

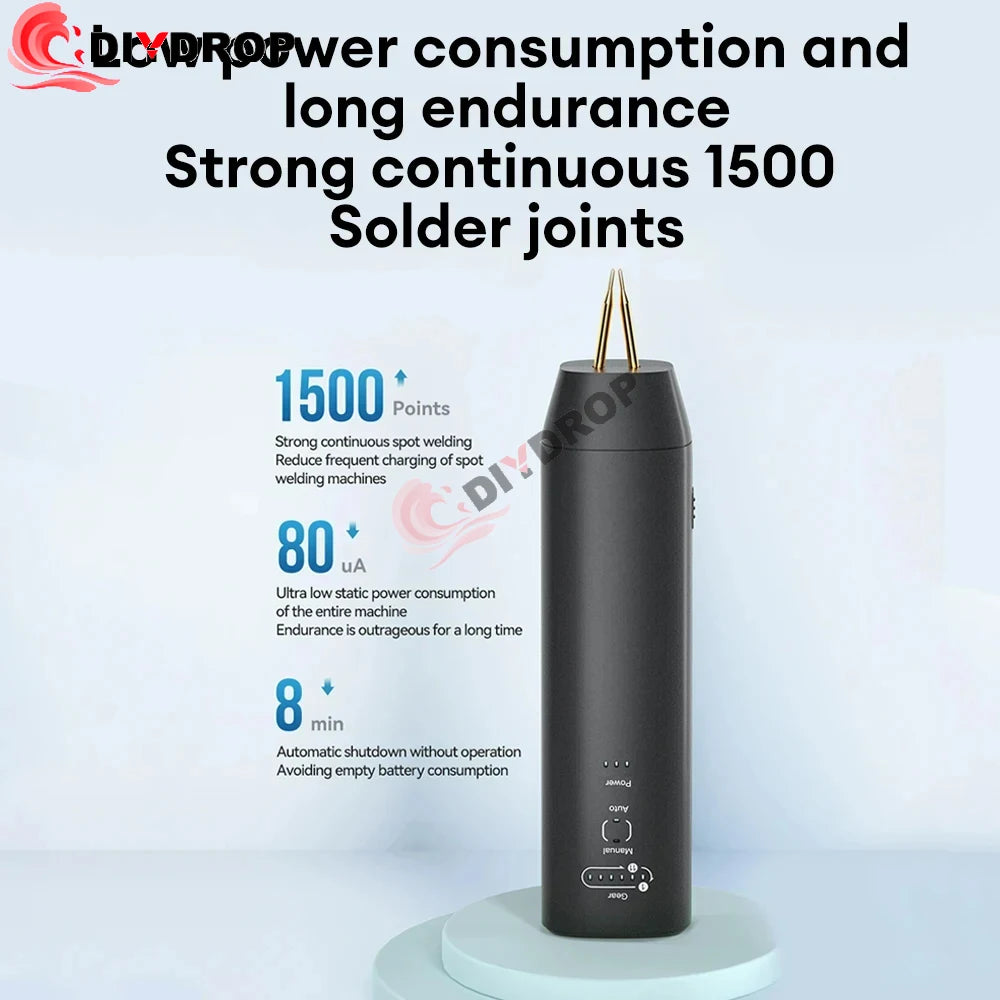

90 Adjustable Gears - The spot welding machine is equipped with 90 gears with adjustable output power, which can be adjusted according to the material you spot weld. Charging once can spot weld more than 1500 times.

Circular LCD color screen- The spot welding machine has a 1.3-inch LCD display screen. The UI display screen presents functions with a circular dial, making circular shapes easier to distinguish. There is a protective film on the surface, which may cause scratches. Please remove the protective film.

Better protection - The high-density aluminum alloy shell of the spot welding machine is excellent for heat dissipation. Provide overcharge protection, temperature protection, short circuit protection, and low power consumption indication. In addition, the spot welding machine will automatically shut down for 6 minutes after operation, so you can use it without any worries.

Multiple protection measures - it is a mini handheld spot welding machine, but it has high-quality polymer battery, overcharge protection, temperature protection, short circuit protection, abnormal battery temperature alarm and spot welding function shutdown, low battery voltage and ultra-low power consumption, longer standby time, Type-c5v2a port charging (high voltage is strictly prohibited).

Exquisite Packaging - Our packaging includes a handheld spot welding machine, 2-meter nickel plated sheet, 1 piece of frosted paper, 1Type-C charging cable, and a manual. Our packaging is very exquisite, making it a very worthwhile gift for your loved ones and friends who love battery DIY.

Parameters:

Product Name: Battery Spot Welding Machine

Model type: H2

Equipment setting: 90 adjustable gears

Spot welding method: automatic/manual gear

Product size: 43 * 25 * 192mm

Input interface: Type-C

Input parameters: 5v/1A (MAX)

Output voltage: 4.2V (MAX)

Output current: 650A (MAX)

Working temperature: -10~60 ℃

Charging temperature: 0-60 ℃

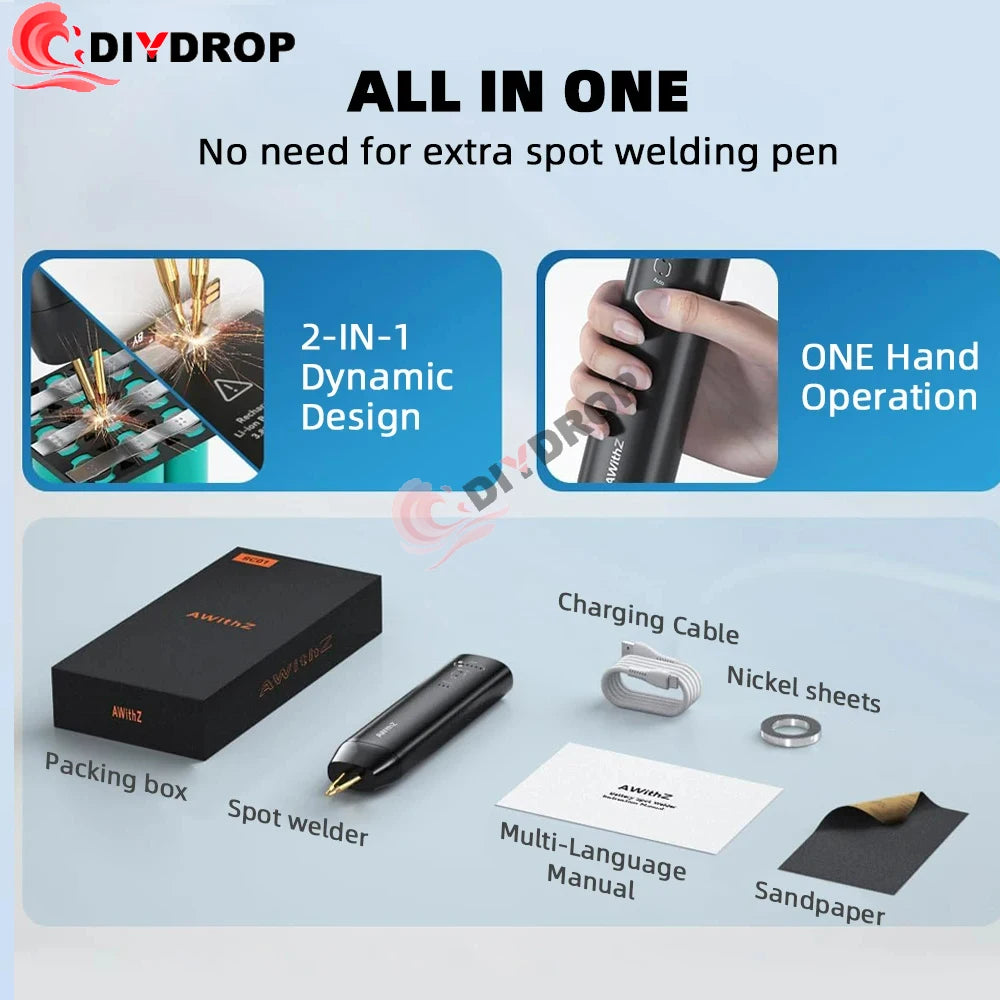

Package include:

Handheld spot welding machine * 1

2 meter nickel plated plate * 1

1 piece of dry sanding paper * 1

Type-c charging cable * 1

User Manual * 1

Features:

1. No spot welding pen required - No need for a spot welding pen when you go out or at home. The handheld spot welder does not require an additional spot welding pen and is convenient to carry with you wherever you go. It combines a built-in power supply and a soldering pen into one, making it easy to weld without the need for an external soldering pen.
2. Wide range of uses - suitable for 18650/26650/36650 and other cylindrical batteries, mobile phone batteries and electronic devices that require batteries. The spot welding machine can be used for electronic equipment that has been damaged due to battery damage, and can be restored to use after replacing the battery (similar to a handheld electric drill), saving money and environmental protection.
3. Easy to use - There are only 2 buttons, and the buttons of our spot welding machine are labeled, making them easy to use. The battery spot welder does not need to leave the palm of our hands. Press and hold the side power switch button with your middle finger for 2 seconds, press and hold the top gear adjustment button once with your index finger, and then hold it for 2 seconds to adjust automatic or manual mode.

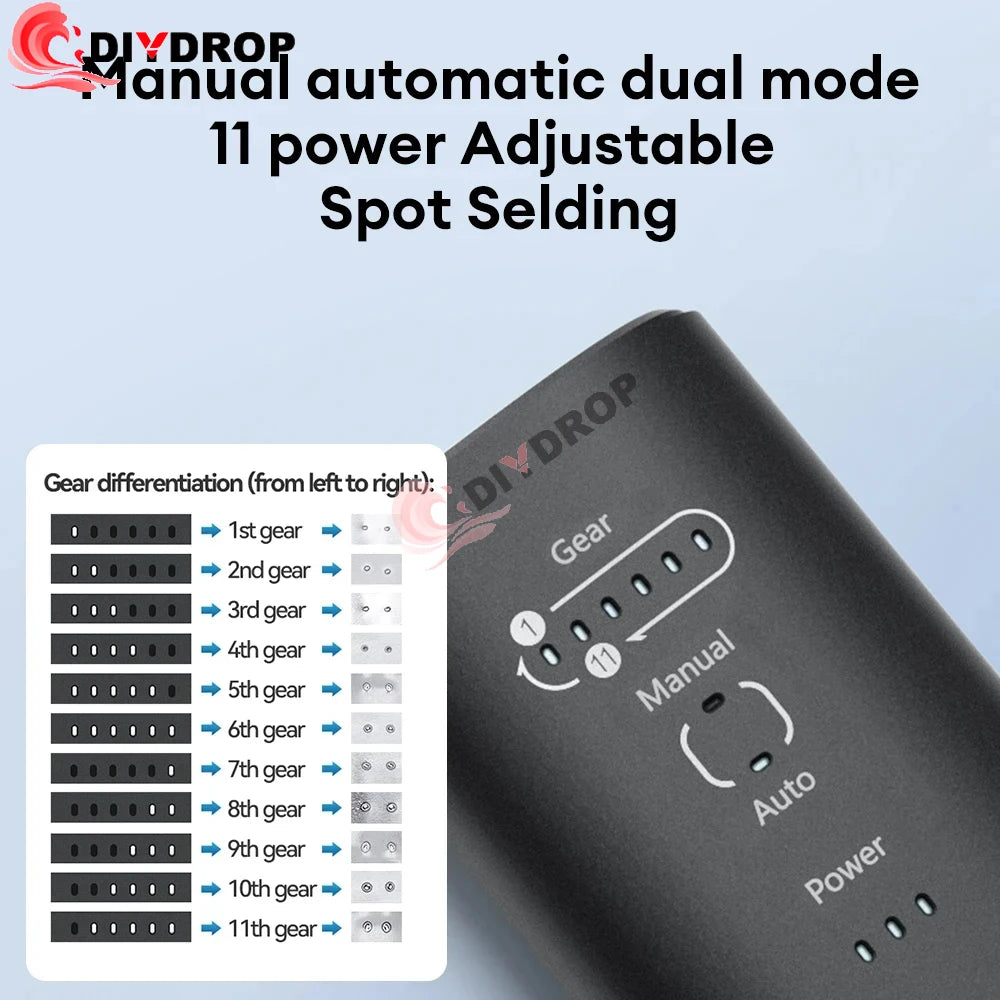

4.11 Adjustable Levels - This spot welder has 11 adjustable levels of output power, which can be adjusted according to the different materials you spot weld. 1-3 gear cell phone batteries, 3-6 gear 0.1 mm nickel plate, 6-11 gear 0.12-0.15 nickel plate. It can spot weld more than 200 times on a single charge.
5. Multiple protection measures - although it is a miniature handheld spot welder, it has high-quality polymer batteries, overcharge protection, temperature protection, short-circuit protection, abnormal battery temperature alarm and spot welding shutdown function, and low battery voltage alarm . Ultra-low power consumption, longer standby time.
6. Exquisite packaging - Our package includes a handheld spot welder, 2 meters of nickel-plated plate, 1 sheet of matte paper, 1 Type-c charging cable and a user manual. Our packaging is very exquisite, making it a very valuable gift for friends and loved ones who like battery DIY.
